Sleeps 5
-
1 Slides
-
Bunk Over CabRear Bath
-
24ft Long

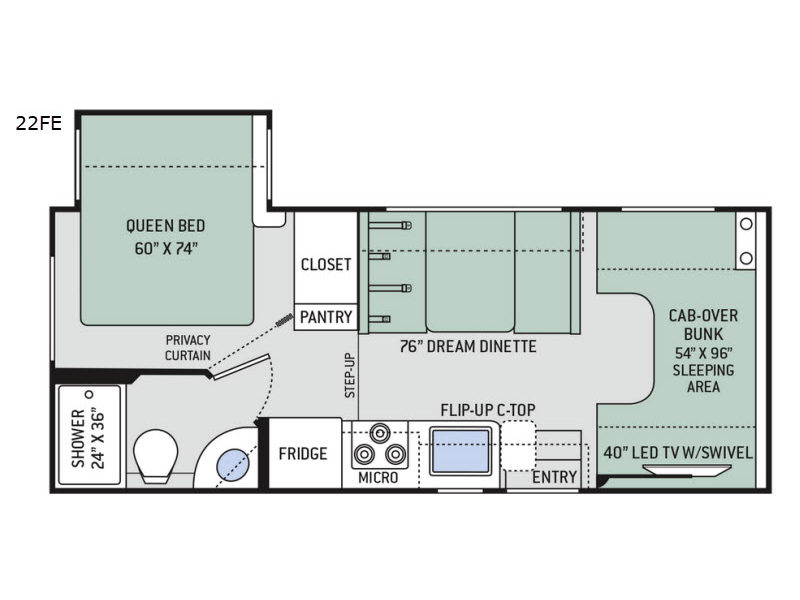

22FE Floorplan


Specifications
Sleeps | 5 | Slides | 1 |
Length | 24 ft | Ext Width | 8 ft 3 in |
Ext Height | 10 ft 10 in | Int Height | 7 ft |
Exterior Color | White | Hitch Weight | 8000 lbs |
GVWR | 14500 lbs | Fresh Water Capacity | 40 gals |
Grey Water Capacity | 37 gals | Black Water Capacity | 24.5 gals |
Furnace BTU | 19000 btu | Generator | Onan RV QG 4000 |
Fuel Type | Gasoline | Miles | 26750 |
Chassis | Ford E-Series | Horsepower | 305 hp |
Fuel Capacity | 55 gals | Wheelbase | 158 in |
Number Of Bunks | 1 | Available Beds | Queen |
Torque | 420 ft-lb | Refrigerator Type | RV Gas/Electric |
Refrigerator Size | 6 cu ft | Cooktop Burners | 3 |
Shower Size | 24" x 36" | Number of Awnings | 1 |
LP Tank Capacity | 40.9 | Water Heater Capacity | 6 gal |
Water Heater Type | DSI Gas | AC BTU | 13500 btu |
Basement Storage | 30.9 cu. ft. | Awning Info | 15' Power |
Gross Combined Weight | 22000 lbs | Shower Type | Standard |
Electrical Service | 30 amp |
Description
Load up your family, your camping items, and easily set out to the destination of your choice with this single slide out 22FE Freedom Elite by Thor Motor Coach. You will find sleeping space for five people throughout this class C model.
Above the cab, there is a bunk area which features 54”x96” sleeping area. Enjoy your meals at the Dream Dinette and at night you can easily convert this area into additional sleeping space.
To the left of the door, you will find the kitchen amenities. Here there is a flip-up counter top, a large sink, overhead cabinets, a three burner range, an overhead microwave, and step up to the refrigerator. Across from the refrigerator, there is a pantry for your canned goods.
In the rear left corner is the bathroom. Here you will find a sink with a medicine cabinet, toilet, and a 24” x 36” shower.
The opposite corner from the bathroom features the bedroom area with a privacy curtain. Here you will also find a slide out queen bed with an overhead cabinet plus there is a closet, and so much more!
Features
Standard Features (2017)
Construction & Exterior
- Ford E-Series Chassis - 6.8L V10 305HP 420 lb-ft Torque
- 8,000-lb. Trailer Hitch with 7-pin Round Connector
- Welded Tubular Steel Floor
- Welded Tubular Aluminum Roof & Sidewall Cage Construction
- Vacu-Bond Laminated Roof, Walls & Floors w/Block Foam Insulation
- One-Piece Fiberglass Front Cap
- Slick Fiberglass Exterior with Graphics Package (N/A 23H, 26HE, 29FE, 30FE)
- HD-MAX ® Exterior with Graphics Package (N/A 22FE)
- Rotocast Storage Compartments
- Exterior Rear MEGA-Storage™ Compartment
- One Portable Table located in the MEGA-Storage™ Compartment (22FE, 26HE, 29FE, 30FE)
- Flush Mount Radius Compartment Doors
- Premium One-Piece TPO Roof
- Power Patio Awning with Integrated LED Lighting
- Slideout Room Topper Awning(s) (N/A 23H)
- Roof Ladder
- Patio Light
- Exterior Grab Handle
- Drop-Down Stairwell Entrance Step
- Entry Door with Deadbolt Lock
- Black Framed Windows
Automotive & Cockpit
- Touchscreen AM/FM Dash Radio w/Back-up Monitor
- Deluxe Exterior Mirrors
- Power Windows & Door Locks
- Emergency Engine Start Switch
- Cruise Control
- Tilt Steering Wheel
- Map Light
- Sun Visors
- Windshield Privacy Curtain
- Drink Holders
- Three-Point Seatbelts for the Driver & Passenger
- Keyless Entry System (N/A 22FE, 23H, 26HE)
- Valve Stem Extenders (N/A 22FE, 23H, 26HE)
- Stainless Steel Wheel Liners
- Aluminum Running Boards
Interior
- 84" Interior Ceiling Height
- Residential Vinyl Flooring Throughout
- Rubber Tread Entry Steps with Lighted Step Well
- Metal Entry Grab Handle
- Smoke, LPG & Carbon Monoxide Detectors
- Fire Extinguisher
- Ceiling Ducted Air Conditioning System(N/A 22FE, 23H)
- High-Sheen Brazilian Cherry Cabinetry (N/A 22FE, 26HE)
- High-Sheen Sydney Maple Cabinetry (N/A 23H, 29FE, 30FE)
- Flat Panel Cabinet Doors with Nickel Finish Hardware
- LED Lighting
- Hard Vinyl Ceiling
- Cab-Over Bunk Ladder
- Fabric Barrel Chair (N/A 22FE, 26HE, 29FE, 30FE)
- Fabric Jack-Knife Sofa (N/A 29FE, 30FE)
- Dream Dinette® Booth
- Passenger Seatbelts in Select Areas
- Window Privacy Shades
- Ball-Bearing Metal Drawer Guides
Kitchen
- 6 cu. ft. Double Door Refrigerator
- 3-Burner Gas Cooktop with Oven
- Microwave Oven
- Laminate Kitchen Countertops
- Flip-Up Countertop Extension(N/A 26HE, 29FE)
- Large Stainless Steel Double Bowl Sink & Single Handle Faucet w/Pull-Down Sprayer
- Kitchen Waste Basket
- Non-Powered Ceiling Vent (22FE, 23H, 26HE, 29FE)
Bedroom & Bathroom
- Queen Size Bed
- Bedspread & Pillow Shams
- Bunk Beds with Ladder (Lower Bunk Converts into Dinette) (N/A 22FE, 23H, 26HE, 29FE)
- Power Vent in Bathroom
- Porcelain Toilet
- Skylight in Shower
- Shower with Curtain (N/A 23H, 26HE, 29FE, 30FE)
- Shower with Retractable Door (N/A 22FE)
Entertainment
- 40” LED TV on Manual Swivel in Cab-Over (N/A 29FE)
- 40” LED TV in Living Area (N/A 22FE, 23H, 26HE, 30FE)
- Bluetooth® Coach Radio System with Exterior Speakers (NA 22FE, 23H, 26HE, 30FE)
- Exterior 32" LED TV on Manual Swivel (N/A 22FE, 23H, 26HE)
- Exterior Kitchen with 2.6 cu. ft. Refrigerator, Sink, Portable Gas Grill & 1,000-watt Inverter (N/A 22FE, 23H, 26HE, 30FE)
- Dual 13" TVs & DVD Player in Bunk Bed Area (N/A 22FE, 23H, 26HE, 29FE)
- Digital TV Antenna
- Cable TV Ready
- HD/DSS Satellite Ready
- Power Charging Center for Electronics (22FE, 23H, 26HE, 30FE)
Electrical & Plumbing
- Onan® RV QG 4000 Gas Generator
- 30-amp Shoreline Power Cord
- Automatic Shoreline-to-Generator Transfer Switch
- 13,500 BTU Roof Air Conditioner
- Battery Disconnect Switch
- Auxiliary House Battery
- 6-gallon DSI Gas Water Heater (N/A 29FE, 30FE)
- 6-gallon DSI Gas/Electric Water Heater (N/A 22FE, 23H, 26HE)
- Water Heater Bypass System
- Outside Shower (N/A 22FE, 23H, 26HE, 29FE)
- Holding Tanks with Heat Pads (22FE, 23H, 26HE, 30FE)
- Systems Control Center
See us for a complete list of features and available options.
All features and specifications are subject to change.
