Floorplan - 2016 Northwood Arctic Fox 29-5K
-
-
-
-


-
Sleeps 4
-
2 Slides
-
Rear KitchenFront Bedroom
-
35ft Long
-
12,625 lbs

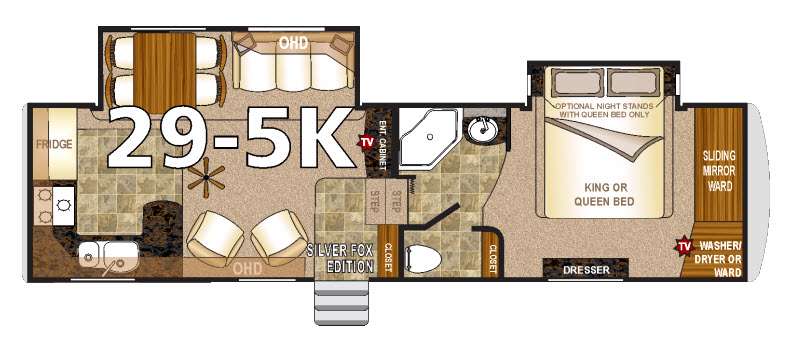

29-5K Floorplan
Specifications
Sleeps | 4 | Slides | 2 |
Length | 35 ft 2 in | Ext Width | 8 ft 6 in |
Ext Height | 13 ft 5 in | Hitch Weight | 2663 lbs |
GVWR | 16600 lbs | Dry Weight | 12625 lbs |
Cargo Capacity | 5392 lbs | Fresh Water Capacity | 82 gals |
Grey Water Capacity | 102 gals | Black Water Capacity | 65 gals |
Tire Size | ST235/85R16 | Furnace BTU | 35000 btu |
Description
Northwood Mfg. offers the Arctic Fox 29-5K wide body Silver Fox Edition fifth wheel with two slides, a rear kitchen, a front bedroom, plus more!
The combined living/kitchen/dining area is opened up with a slide out. As you enter, a closet is on your right. Past the center steps, an entertainment center with a TV is along this front wall.
Continuing around, the slide out provides a jackknife sofa with overhead cabinets, and a free standing dinette with four chairs.
The kitchen is in the rear of the fifth wheel and continues around the corner onto the curb side wall. It offers a large refrigerator, a three burner range, a double sink, and u-shaped counters along the curb side wall. Overhead cabinets run across the full rear wall, around the corner and along the side wall up to the door. Just beyond the kitchen counters you find two swivel chairs for additional seating. There is also a ceiling fan mounted in the center of the room for air movement.
Move forward, up the center stairs, to a split bathroom with a private toilet area on your right. A corner shower, a vanity sink, and a medicine cabinet are on your left.
The bedroom includes a queen bed with optional nightstands within a slide. You may also choose a king size bed as the contents of the slide if you would like. Along the front wall there is a sliding mirror wardrobe, and another angled wardrobe or a washer/dryer closet. There is also a TV mounted in the corner. A dresser is along the wall opposite the bed for even more storage, and so much more!
Features
- Northwood Built, Independently Certified, Off-Road Chassis
- Fully Welded, Thick-Wall Aluminum Frame Construction
- One-Piece, Corona Treated, Continuous Fiberglass
- Hot, Polyurethane Laminated, Multi-Layered Substrate Walls
- High Density Block Foam Insulation
- Wide-Body Floorplan
- E-Z Lube Axles w/Nev-R Adjust froward, Self Adjusting Brakes
- 15" Aluminum Wheels/Tires & White Mod Spare
- Shocks On All Four Wheels
- Stabilizer Jacks
- All-Conditions/Four Seasons Insulation with R-18 Ceiling
- Heated Holding Tanks/Cathedral Arched Ceiling
- Aerodynamic One Piece Front Cap w/BackRoad Armor
- Easy Access LP Cover/Diamond Plate Bumper Wrap
- LED Interior & Exterior Lighting
- Roof Rack & Ladder
- SLAM Door Latches on Pass Thru Storage Doors
- 12V Light in Storage Compartment
- LPG Quick Connect & Black Water Flush System
- Large Exterior Entry Grab Handle/Entry Door Friction Hinge
- Exterior Shower/2 Afox Logo Director's Chairs
- Semi-Automatic Winterization/By-Pass System
- 6 Gal DSI Gas/Elect Quick Recovery Water Heater
- 13.5m BTU Air Conditioner w/Condensation-Resistant Ducting
- Carefree Travel'R 12V LED Awning w/Adjustable Pitch Hardware
- TV Antenna
- 12-Volt Power Tongue Jack
- Outside Speakers/Battery Disconnect
- Tinted Windows
- Satellite Ready/Solar Ready
- Interior Command Center
- Roller Bearing Drawer Glides
- Fabric Night Shade Window Treatments
- 12" 12v LED TV & AM/FM/CD/DVD Player w/Bluetooth
- Smoke, LPG & CO Leak Detectors
- Booth Dinette
- Solid Surface Kitchen Countertops
- Charge Wizard/Digital Thermostat
- Residential, Built-In Microwave/Range Cover
- Large Fridge (6 Cu Ft) w/Multiple Raised Panels
- Kitchen Skylight w/Shade
- Fan Vent (Bedroom)
- Porcelain, Foot-Pedal Toilet/Bath Skylight
- Glass Shower Enclosure/Shower Pan
- NW TruRest Queen Mattress w/Bedspread
- Built-In Laundry Chute
- 12v & USB Charging Center on Both Sides of Bed
Arctic Fox Classic - Options
- Battery Box Kit
- CSA (Canadian Dealers Only)
- 15K Low Pro Air Conditioner
- 15K Air Conditioner w/ Ducting
- Fan Vent – Bathroom (Exhaust Only)
- Powered Scissor Jacks, Front and Rear
- Thermal Pane Windows.
- Sit & Sleep Sofa Bed
- Bedroom Carpet w/Pad
- Generator Ready w/11m BTU AC(Del 13.5 AC)
- 2.5 Onan LP Generator
- 60 Watt Solar Panel
- 100 Watt Solar Panel
- Aussie Grill w/ Bracket
- Upgrade to 28″ TV
Arctic Silver Fox TT
- Northwood Built, Independently Certified, Off-Road Chassis
- Fully Welded, Thick-Wall Aluminum Frame Construction
- One-Piece, Corona Treated, Continuous Fiberglass
- Hot, Polyurethane Laminated, Multi-Layered Substrate Walls
- High Density Block Foam Insulation
- E-Z Lube Axles w/Nev-R Adjust Forward, Self Adjusting Brakes
- Heavy Duty Greaseable Suspension
- 16″ Aluminum Wheels / Tires & White Mod Spare
- Stabilizer Jacks
- Kitchen Slide / Flush Floor Super Slide
- All-Conditions/Four Seasons Insulation With R-18 Ceiling
- R-15 Reflective Foil Insulation in Roof / Slides
- Heated Holding Tanks / Cathedral Arched Ceiling
- Aerodynamic One Piece Front Cap w/BackRoad Armor
- 2 Independently Switched LED Hitch Lights
- Fiberglass Rear Cap / Easy Access LP Cover
- LED Interior & Exterior Lighting
- Roof Rack & Ladder
- SLAM Latch Luggage Doors / Magnetic Lugg Door Catches
- 12V Light in Storage Compartment
- LPG Quick Connect & Black Water Flush System
- Large Exterior Entry Grab Handle / Entry Door Friction Hinge
- Exterior Shower / 2 Afox Logo Director’s Chairs
- Semi-Automatic Winterization/By-Pass System
- 10 Gal DSI Gas/Elect Quick Recovery Water Heater
- 13.5m BTU Air Conditioner w/Condensation-Resistant Ducting
- Carefree Travel’R 12V LED Awning w/Adjustable Pitch HW
- TV Antenna
- 12-Volt Power Tongue Jack
- Outside Speakers/Battery Disconnect
- Thermal Pane Windows
- Satellite Ready / Solar Ready
- Interior Command Center / Afox Signature Throw Blanket
- Livingroom & Bedroom Carpet w/ Pad
- Roller Bearing Drawer Glides
- Fabric Night Shade Window Treatments
- 32″ 110 LED Smart TV & AM/FM/CD/DVD Player w/Bluetooth
- Smoke, LPG & CO Leak Detectors
- Charge Wizard / Digital Thermostat
- Free-Standing Table With 4 Chairs
- Tri-Fold Sofa With Decorative Throw Pillows
- Solid Surface Kitchen Countertops / Range Cover
- 1.5 Cu Ft Over-The-Range, Convection Micro w/Range Hood
- Extra Large Fridge (8 Cu Ft) w/ Multiple Raised Panels
- Kitchen Sink Center Island
- Antique-Finish Kitchen Cabinetry / Lighted Toe Kick
- Dayliter Kitchen Skylight w/ Shade
- Solid Surface Bathroom Countertops w/SS Sink
- Fan Vent (Bedroom)
- Porcelain, Foot-Pedal Toilet / Bath Skylight
- Glass Shower Enclosure / Garden Pan
- NW TruRest Mattress w/UltraDeck Sleep System
- Bedroom Starlite w/ Shade /Lock Box
- 12v & USB Charging Center on Both Sides of Bed
Arctic Silver Fox - Options
- Booth With Dream Dinette – No Charge
- Battery Box Kit
- Slide-Out Topper
- CSA (Canadian Dealers Only)
- 15K Low Pro Air Conditioner
- 10 Cubic Foot Refrigerator
- 15K Air Conditioner w/ Ducting
- Fan Vent – Bathroom (Exhaust Only)
- Cordless Vacuum
- Powered Scissor Jacks, Front and Rear
- 10 Gallon LP Upgrade
- Slow Rise Night Shades
- Holding Tank Heat Pads (All Tanks)
- Air Hide-A-Bed w/Pillows
- Outdoor Kitchen w/Sink, 110 Fridge &
- Aussie Grill w/Stand
- Fireplace
- Generator Ready
- 3.6 Onan LP Generator
- 60 Watt Solar Panel
- 100 Watt Solar Panel
- Winegard Carryout G2+ Sat(DISH/DIRECT)
- (HD Sat-Call For Options)
- Cross-Stitch Sofa 68″
- Aussie Grill w/Stand
FW
- Northwood Built, Independently Certified, Off-Road Chassis
- Fully Welded, Thick-Wall Aluminum Frame Construction
- One-Piece, Corona Treated, Continuous Fiberglass
- Hot, Polyurethane Laminated, Multi-Layered Substrate Walls
- High Density Block Foam Insulation
- Wide-Body Floorplan
- E-Z Lube Axles w/Nev-R Adjust Forward, Self Adjusting Brakes
- Heavy Duty Greaseable Suspension
- 16″ Aluminum Wheels / Tires & White Mod Spare
- Mor/ryde RPB Pin Box / Stabilizer Jacks
- Ward-Linen Closet Slide / Flush Floor Super Slide
- All-Conditions/Four Seasons Insulation With R-18 Ceiling
- R-15 Reflective Foil Insulation in Roof / Slides
- Heated Holding Tanks / Cathedral Arched Ceiling
- Aerodynamic One Piece Front Cap
- 2 Independently Switched LED Hitch Lights
- Fiberglass Rear Cap / LED Cap Accent Lights
- LED Interior & Exterior Lighting
- Roof Rack & Ladder / TV Antenna
- Exterior Convenience Center
- SLAM Latch Luggage Doors / Magnetic Lugg Door Catches
- LPG Quick Connect & Black Water Flush System
- Large Exterior Entry Grab Handle / Entry Door Friction Hinge
- Exterior Shower / 2 Afox Logo Director’s Chairs
- Semi-Automatic Winterization/By-Pass System
- 10 Gal DSI Gas/Elect Quick Recovery Water Heater
- 13.5m BTU Air Conditioner w/Condensation-Resistant Ducting
- Carefree Travel’R 12V LED Awning w/Adjustable Pitch HW
- 12-Volt Power Landing Gear
- Outside Speakers/Battery Disconnect
- Thermal Pane Windows / Exterior Security Lights
- Generator Ready / Satellite Ready / Solar Ready
- Digital Thermostat
- Interior Command Center / Afox Signature Throw Blanket
- Livingroom & Bedroom Carpet w/ Pad
- Roller Bearing Drawer Glides
- Fabric Night Shade Window Treatments
- 32″ 110 LED Smart TV & AM/FM/CD/DVD Player w/Bluetooth
- Smoke, LPG & CO Leak Detectors / Charge Wizard
- Free-Standing Table With 4 Chairs
- Tri-Fold Sofa With Decorative Throw Pillows
- Solid Surface Kitchen Countertops / Range Cover
- 1.5 Cu Ft Over-The-Range, Convection Micro w/Range Hood
- Extra Large Fridge (8 Cu Ft) w/ Multiple Raised Panels
- Antique-Finish Kitchen Cabinetry / Lighted Toe Kick
- Dayliter Kitchen Skylight w/ Shade / Ceiling Fan
- Convenient, Sliding Pantry Rack
- Fan Vent w/Remote/Tstat/Rain Sensor (Kitchen)
- Solid Surface Bathroom Countertops w/SS Sink
- Fan Vent – Bedroom / Exhaust Only Fan Vent – Bathroom
- Porcelain, Foot-Pedal Toilet / Bath Skylight
- Glass Shower Enclosure
- Garden Pan / Bathroom Courtesy Light
- Telescoping Lighted Vanity Mirror
- NW TruRest Mattress w/UltraDeck Sleep System
- Bedroom Starlite w/ Shade
- 12v & USB Charging Center on Both Sides of Bed
FW - Options
- Booth With Dream Dinette – No Charge
- 29″ Surround-Soundbar
- Slide-Out Topper
- Ward Slide Awning Topper
- CSA (Canadian Dealers Only)
- 28″ 110V LED Smart TV Bedroom
- 15K Low Pro Air Conditioner
- 10 Cubic Foot Refrigerator
- 15K Air Conditioner w/ Ducting
- 2nd A/C (Low Pro 13.5K) *50 Amp Service Required
- Cordless Vacuum
- Slow Rise Night Shades
- Holding Tank Heat Pads (All Tanks)
- Hide-A-Bed w/Pillows
- Air Hide-A-Bed w/Pillows
- Fan Vent w/Remote/Tstat/Rain Sen (Bedroom)
- Powered Sliding Stab Jacks,Rear
- 50 Amp Service
- 3.6 Onan LP Generator
- 5.5 Onan Gold LP Gen-50 Amp Service Required
- 60 Watt Solar Panel
- 100 Watt Solar Panel
- 4 Point Leveling System
- Winegard Carryout G2+ Sat(DISH/DIRECT)
- (HD Sat-Call For Options)
- Aussie Grill w/ Bracket
- 1 Cross-Stitch Swivel Rocker Recliner
- Cross-Stitch Sofa 68″
- Cross-Stitch Sofa 68″ w/Air Mattress 54X74
- Rear View Camera
