Floorplan - 2017 Forest River RV Wildcat Maxx 28RBX
-
-
-
-

-
Sleeps 5
-
1 Slides
-
Outdoor KitchenU Shaped Dinette
-
34ft Long
-
7,631 lbs

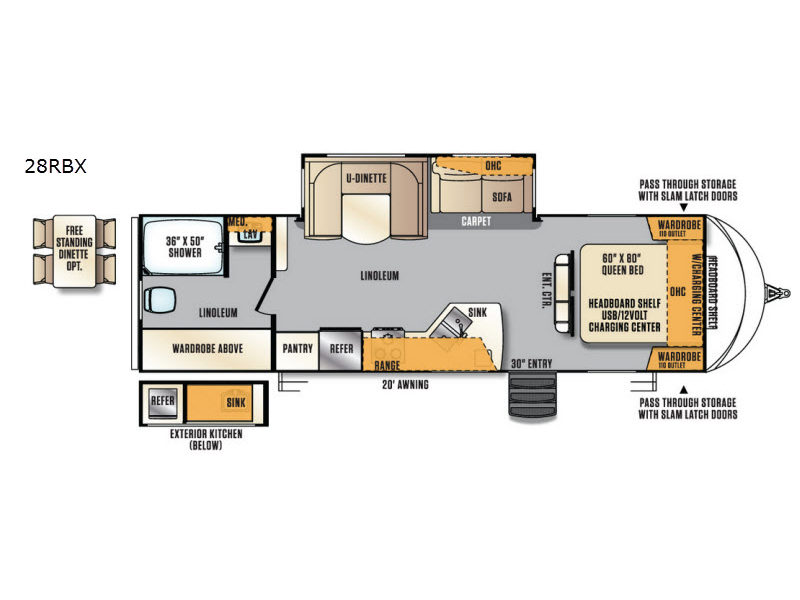

28RBX Floorplan
Specifications
Sleeps | 5 | Slides | 1 |
Length | 33 ft 6 in | Ext Width | 8 ft |
Ext Height | 11 ft 4 in | Hitch Weight | 898 lbs |
GVWR | 11058 lbs | Dry Weight | 7631 lbs |
Cargo Capacity | 3427 lbs | Fresh Water Capacity | 67 gals |
Grey Water Capacity | 108 gals | Black Water Capacity | 54 gals |
Furnace BTU | 35000 btu | Available Beds | Queen |
Refrigerator Type | RV Gas/Electric | Refrigerator Size | 8 cu ft |
Cooktop Burners | 3 | Shower Size | 36 x 50 |
Number of Awnings | 1 | AC BTU | 13500 btu |
Awning Info | 20' Electric |
Description
Step in and notice the entertainment center with LCD TV just off the foot of the bed to your right. There are sliding doors on either side of the TV unit providing privacy and access to the front bedroom. Here you will find a queen size bed, dual bedside wardrobes, and overhead storage. There is also a pass-through compartment beneath the bedroom with slam latch doors.
The kitchen area makes cooking easy with a three burner range including an overhead microwave oven. There is also a refrigerator, a pantry, and double sinks to make cleaning up simple too.
Opposite the kitchen area you will find plenty of space to sit and relax or enjoy a meal. The road side features a slide out u-shaped dinette and a sofa with overhead storage. You can easily create added sleeping space here when needed as well.
The rear offers a spacious bath including a large wardrobe above an outside kitchen, a toilet, and tub/shower, plus vanity with sink.
The outdoor kitchen makes cooking outside simple. You have a counter area, a cook-top, single sink, and storage space. There is also a 19' awning nearby so you can dine outside if you like with a little overhead protection from the elements. Another exterior feature to enjoy is the outside shower. All of this and more will make your future camping trips enjoyable in this Wildcat Maxx 28RBX!
Features
Living Room
- Extra large booth dinette with storage under and dual pedestal table
- Tri-fold sofa Hide-a-Bed sleeper sofa
- Large panoramic picture window at all dinettes
- Overhead cabinets in slide room (dinner plate depth!)
- Pleated night shades
- AM/FM/CD/DVD/USB/AV system with remote and Bluetooth technology
- RCA plugs for game systems or digital cameras
- Taller 6′ high slide-out height (1/2-Ton Fifth Wheels)
- Taller 6′4″ high slide-out height (Standard Fifth Wheels)
- Satellite and cable TV hook ups
- 12V LED decorative lighting in slide-outs
- High back, extra-large swivel rocking chairs (select models)
- Slider windows at ends of slide-outs
- Maxx Bright complete interior LED lighting
- Residential carpeting with Stain Guard
- Magazine rack
- Command center with monitor panel
- Surround sound speakers
- Wall clock
Executive Kitchen
- Residential Shaker-style hardwood cabinet doors
- Residential hidden hinges
- Brushed nickel finish door and drawer hardware
- Stainless appliances
- Residential full-extension steel ball-bearing drawer guides
- Storage above refrigerator (most models)
- Upgraded microwave oven
- Brushed nickel pull-out residential style metal high-rise faucet with optional solid surface counters
- 8 cu. ft. refrigerator (included on standard Fifth Wheels)
- Extra large dual-basin kitchen sink with flush mount dual sink covers
- Deep storage overhead kitchen cabinets
- Extra large pots and pans drawer (most models)
- Toe kicks in kitchen cabinet base
- Glued down residential Trekk® linoleum
- 22" oven and 3-burner range with cover and built-in knife rack
- Residential style range vent with light and fan
- Paper towel rack
- Cutlery drawer
- Kitchen wall border
- Cutting board
- Knife rack
- C.T.S. (central trash system) (most models)
Bathroom
- Porcelain toilet with foot pedal flush
- Built-in wood medicine cabinet
- GFI recepts in bathroom
- Residential shower surround with radius glass shower doors
- Skylight in shower
- Power vent fan
- Built-in wood dual toilet paper holder with magazine rack
- Soap dish
- Tooth brush holder
- Dual towel racks
- Radius glass shower doors
Bedroom
- Pillow-top residential queen bed
- Full stand-up height in all bedrooms
- Flat floor bedrooms in all Fifth Wheels (no more steps on side of bed)
- Gas struts to lift bed for under-bed storage
- Fully finished bed bases
- Complete LED lighting including reading lights
- Upgraded residential queen-size bedspread and headboard
- Bedroom roof vent
Construction
- 3/8″ roof decking
- Insulated A/C duct work
- Heavy duty steel I-beam chassis
- High density R10 block foam insulation in walls
- Vinyl covered interior decorative wall board
- Full-size radius entry door
- 13.5K BTU air conditioner
- 5/8″ seamless floor decking
- One-piece Alpha Super Flex 3 roof membrane (12 year warranty)
- 5″ engineered and fabricated roof rafters on 16″ center
- 2 layers of (R-7) fiberglass roof and end wall insulation plus reflective (R-38) with Astrofoil
- (R-7) Fiberglass floor insulation plus reflective (R-38) with Astrofoil
- Aerodynamic gel-coated fiberglass front cap
- All Season 12V heating pads on all tanks
- Optimized turning radius for today's short-bed trucks
- 2″ thick Alumacat™ vacuum-bonded fiberglass laminated sidewalls
- Spring-loaded quick release jack pins on landing gear legs
- Radius-wrap aluminum skirt metal
- Fully enclosed underbelly with (R-7) fiberglass insulation and (R-38) Astrofoil under holding tank
- Premium carpet padding
- Synthetic residential carpeting with stain guard
- Load range D 15″ radial tires (standard) or optional load range E 16″ tires
- E-Z lube axles
- Molded fender skirt
- Pre-wired for back-up camera
- Vented attic
Climatech™ Cold Weather All Seasons Insulation Package
- Underbelly has R-38 reflective astro-foil insulation + R-7 fiberglass under each holding tank. Also included is a 12-volt tank heater for each of the holding tanks.
- The floor has R-38 reflective astro-foil insulation + R-7 fiberglass insulation.
- The ceiling, front wall and rear wall have R-38 reflective astro-foil insulation + two-layers of R-7 fiberglass insulation.
- The side walls, three sides of the slide-out, the raised upper deck of all fifth wheels and all raised bunk beds are vacuum-bonded, aluminum construction with R-10 high-density block foam insulation
- The slide-out floor also has a layer of R-38 reflective astro-foil insulation on top of 1.5" plywood decking.
- On all fifth wheels, the outside storage compartments have an actual heat duct blowing hot air from the furnace directly into the storage compartment.
- Every Wildcat Maxx comes with a vented attic to allow moisture to escape in the winter and heat to escape in the summer.
- Every Wildcat Maxx comes standard with a 35,000 BTU furnace.
Standard Features
- Linc® 8-function touchscreen remote
- USB Charging Port Package
- Numeric keypad keyless entry security system
- Power tongue jack (travel trailers only)
- HDMI AM/FM/DVD/CD/USB Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Front and rear electric stabilizer jacks
- Coach-Net® 24-hour technical and roadside assistance
- Solar Prep (optional 200W solar panels available, up to 400W)
- Back-up camera prep with optional camera system available
- High-end stainless appliances
- Maxx coat rack
- Outside shower system
- 1" thick, insulated slam-latch baggage doors on extra-large exterior storage
- Maxx travel rack (250 lb. load capacity)
- Exterior Maxx-Bright LED awning strip lighting
- Sanitation maintenance black tank flush
- Battery disconnect
- Maxx Bright complete coach LED light package
Half-Ton Travel Trailer Standard Features
- Solar Prep
- Large LCD HDTV
- Back-up camera prep
- Heated holding tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
Standard Series Fifth Wheel Standard Features
- Large LCD TVs on all models
- Samsung® Staron solid surface counters (kitchen only)
- Universal roof mounted solar prep
- Back-up camera prep
- Heated tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- 8' cu. ft. refrigerator
- Solid surface counters
- 16" E range tires with custom aluminum wheels
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
- Fantastic Fan
- 10 gallon DSI water heater
Half-Ton Fifth Wheel Standard Features
- Large LCD TVs on all models
- Universal roof mounted solar prep
- Back-up camera prep
- Heated holding tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- Shaker style real hardwood cabinets with hidden hinges
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
See us for a complete list of features and available options.
